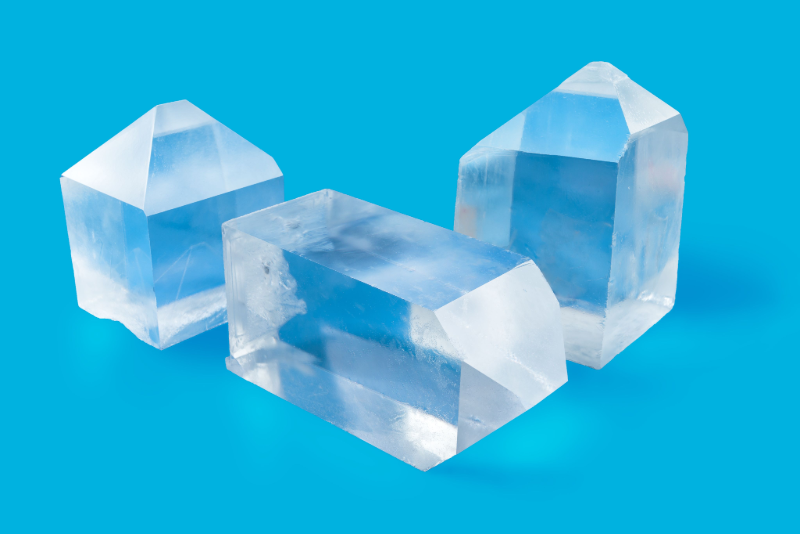

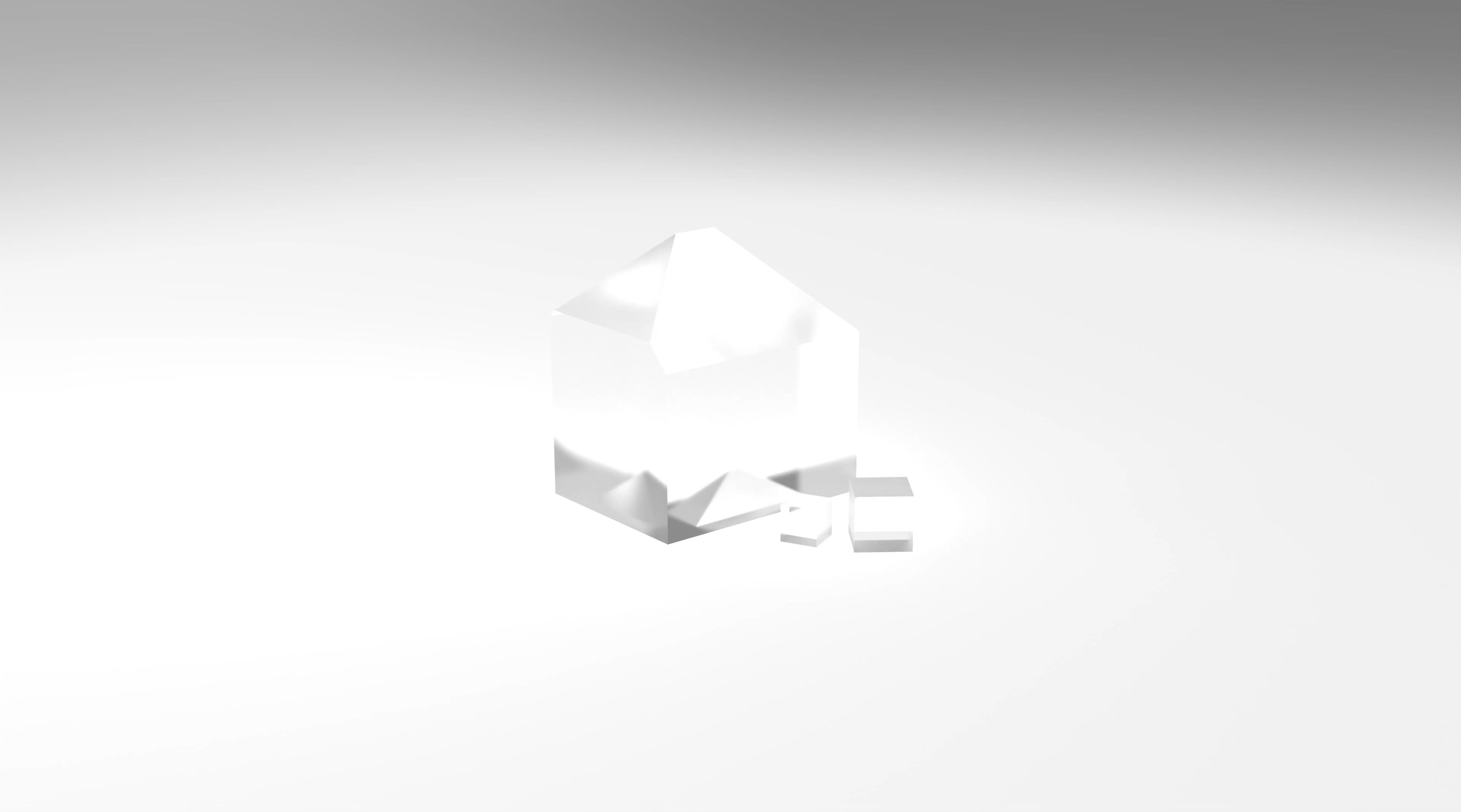

Potassium Dihydrogen Phosphate (KDP) and Potassium Deuterium Phosphate (KD*P) are among the most widely-used commercial NLO materials. They are commonly used for doubling, tripling and quadrupling of Nd:YAG laser at the room temperature. In addition, they are also excellent electro-optic crystals with high electro-optic coefficients, widely used as electro- optical modulators, Q-switches, and Pockels Cells, etc.

We are available 24/7 by e-mail, whatsapp or by phone. You can also use our quick contact form to ask a question about our products.

Submit

Product Description:

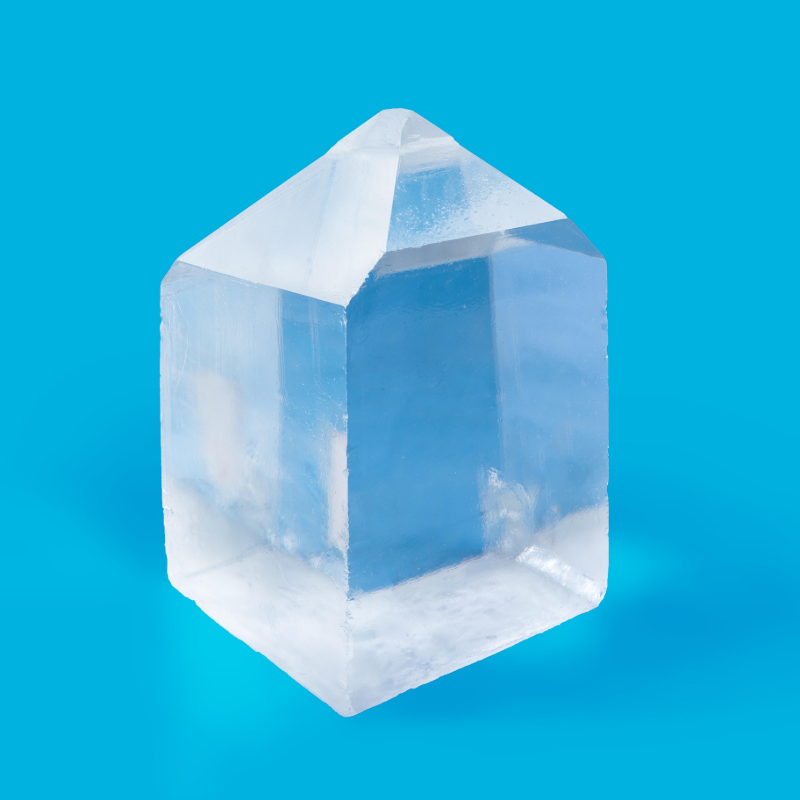

Potassium Dihydrogen Phosphate (KDP) and Potassium Deuterium Phosphate (KD*P) are among the most widely-used commercial NLO materials. They are commonly used for doubling, tripling and quadrupling of Nd:YAG laser at the room temperature. In addition, they are also excellent electro-optic crystals with high electro-optic coefficients, widely used as electro- optical modulators, Q-switches, and Pockels Cells, etc.


FEATURES


• Good UV transmission

• High optical damage threshold

• High birefringence

• High nonlinear coefficients


APPLICATIONS


-   Laser frequency conversion — harmonic generation for high pulse energy,

-   Electro-optical modulation

-   Q-switching crystal for Pockels cells


SPECIFICATIONS


Flatnessλ/8 at 633nm
Parallelism≤20 arcsec
Wavefront Distortionλ/8 at633nm
Surface Quality20-10
Perpendicularity≤5 arcmin
Angle tolerance≤±0.25°
Dimension tolerance± 0.1mm
Clear Aperture90% of central area
Chamfer≤0.2mm x 45°
Chip≤0.1 mm
Damage Threshold1GW/cm2 @1064nm 10ns 10Hz for DKDP
