Ammonium Dihydrogen Phosphate is a member of the KDP-type crystal family and has been used in practical production for a long time as a large-sized crystal. Due to its various special functionalities like laser frequency doubling, electro-optic effect, and piezoelectric effect, the research and application of ADP crystals have been of significant interest to people.

We are available 24/7 by e-mail, whatsapp or by phone. You can also use our quick contact form to ask a question about our products.

Submit

Product Description:

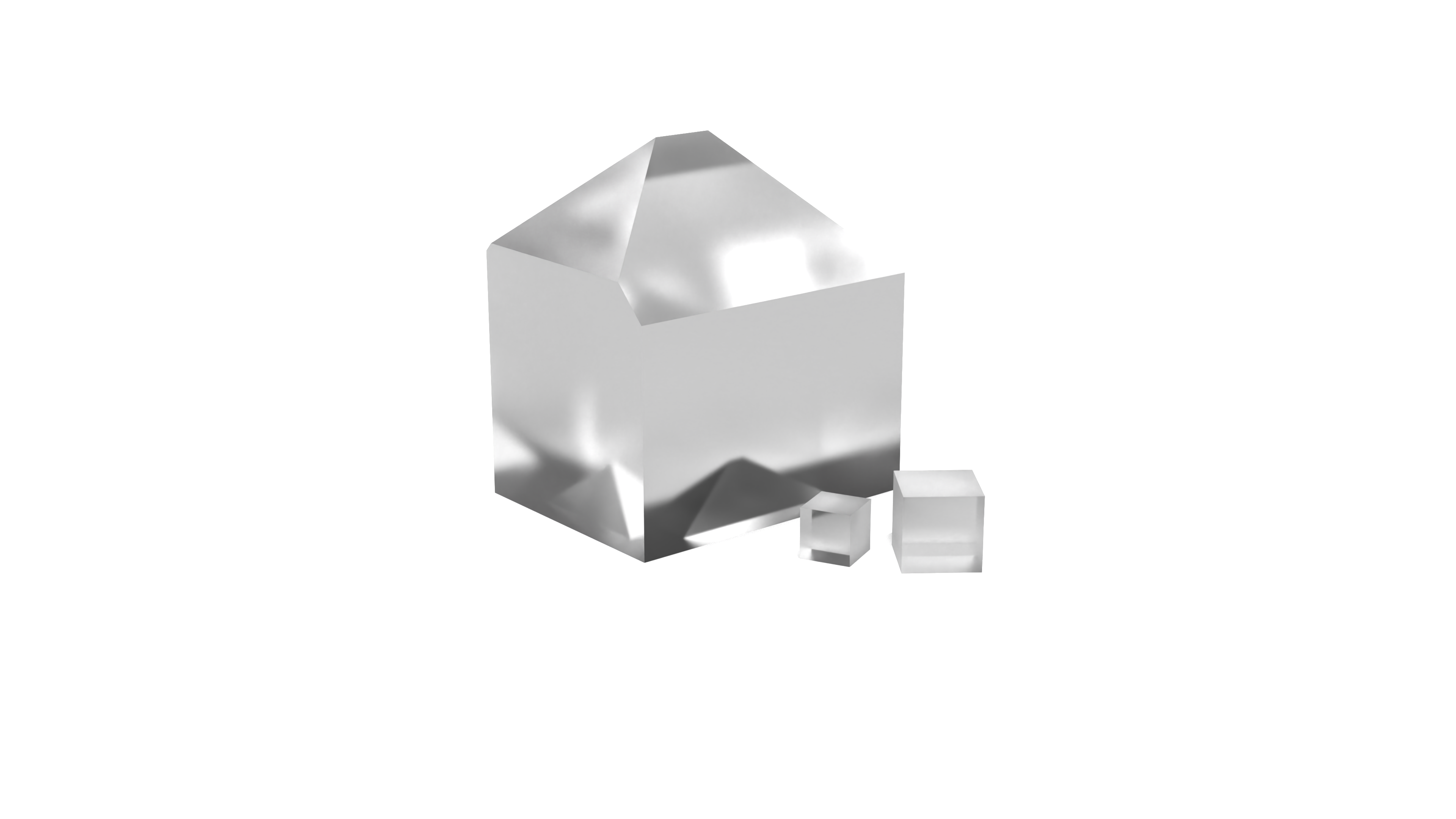

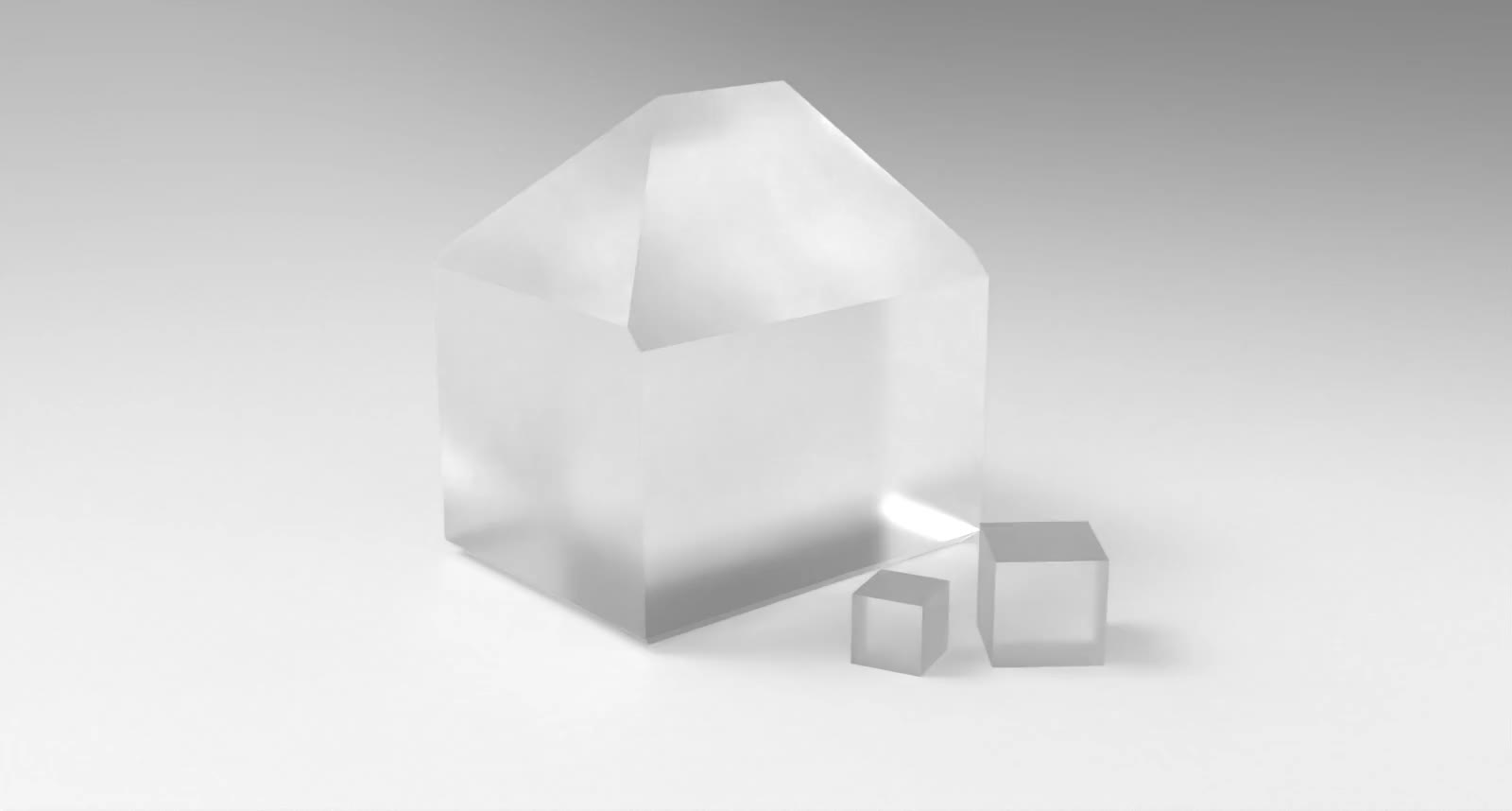

ADP crystals


Applications

1. SHG/THG

2. Photoelectric Modulation

3. Q-Switch


Features

1. Efficient laser harmonic generation effect

2. X-ray spectroscopic effect

3. Easy growinglarge-sized high-quality crystals


Specifications

Clear Aperture
>90%
Parallelism Error<20 arcsec
Perpendicularity Error<5 arcmin
Surface Quality20/10, S/D
Surface Flatness<λ/8@632.8nm
Laser Induced Damage Threshold6 GW/cm²@1064nm, 10ns
Density
1.799 g/cmm³
Transparency Range180~1500nm
Refractive Indcesn^0=1.5071, n^e=1.4685
