Product Description:

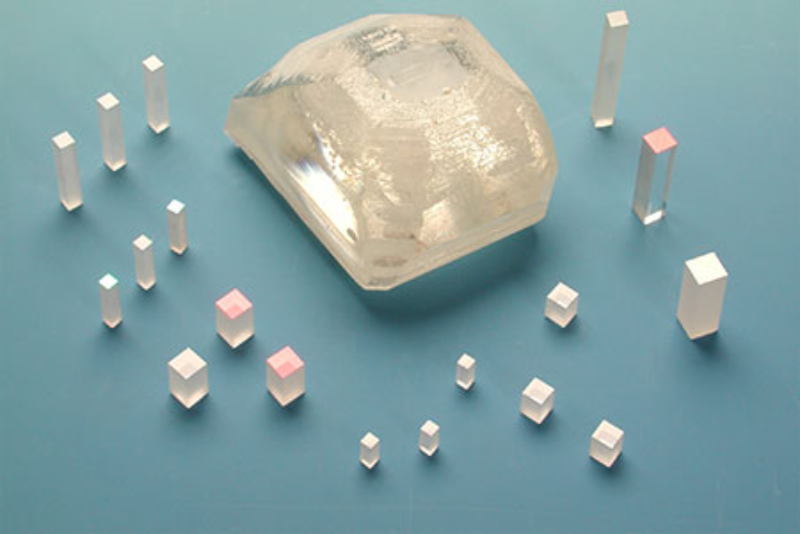

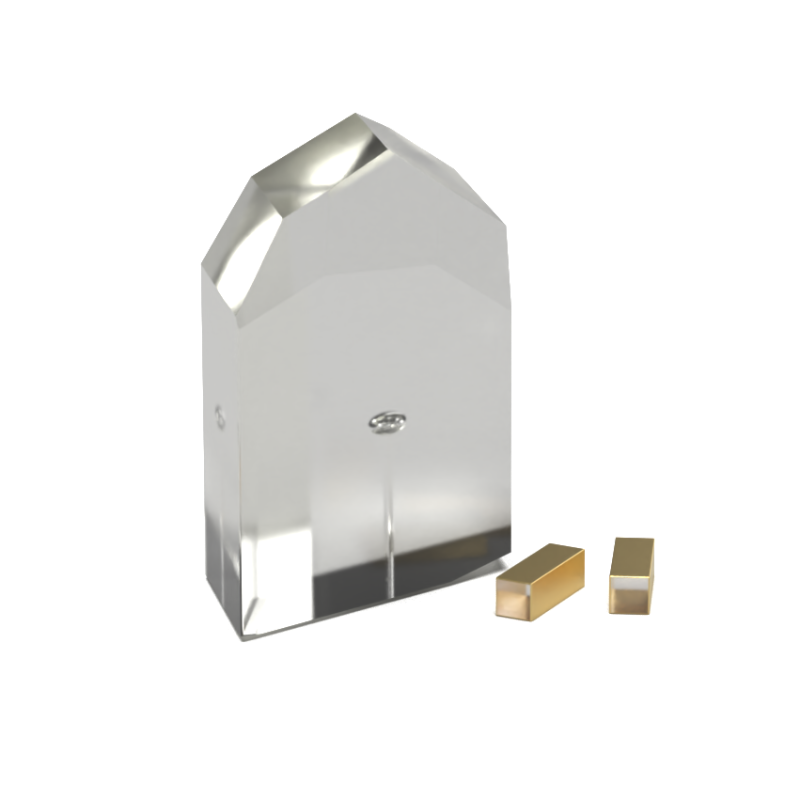

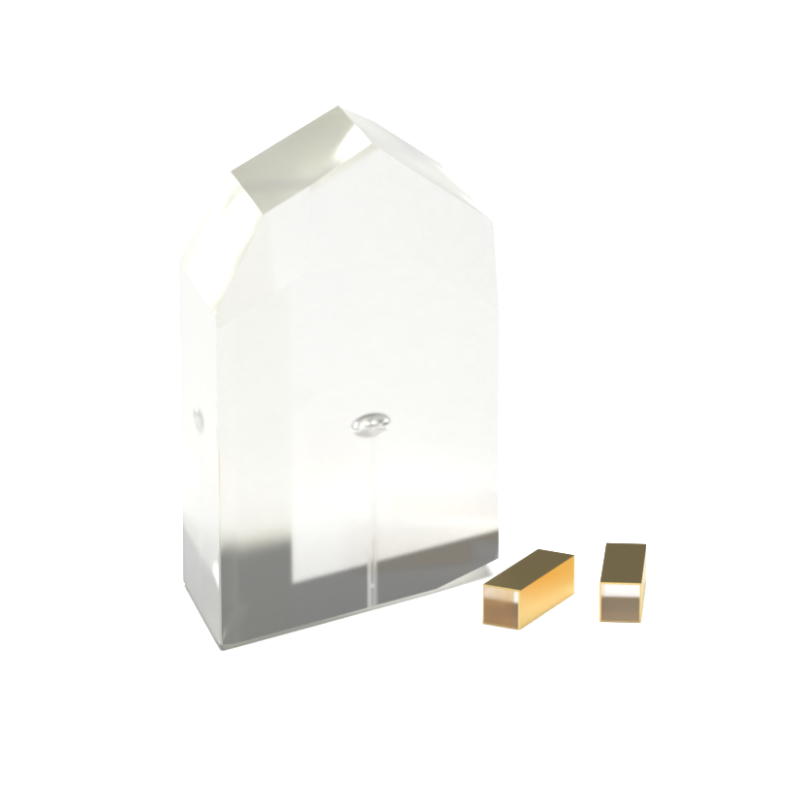

RTP - Rubidium Titanyl Phosphate (RbTiOPO4 )


Rubidium Titanyl Phosphate (RbTiOPO4 or RTP) is an isomorph of KTP crystal which is used in nonlinear and Electro-Optical applications. It has advantages of high damage threshold (about 1.8 times of KTP), high resistivity, high repetition rate, no hygroscopy and no induced piezo-electric effect with electrical signals up to 60 kHz. Its transmission range is 350 nm to 4500 nm.


Growing OrientationAlong Y-axis
Maximum Length (5×5 mm2  aperture)25 mm
Length Tolerance+ 0.5/- 0.1 mm
Surface Quality (Scratch/Dig)20/10 to MIL-PRF-13830B
Flatnessλ/6 @633 nm
Parallelism20 arc sec
Perpendicularity≦15 arc min
Angle Tolerance≦0.5 °
CoatingAR-coatings
Quality Warranty PeriodOne year under proper use
