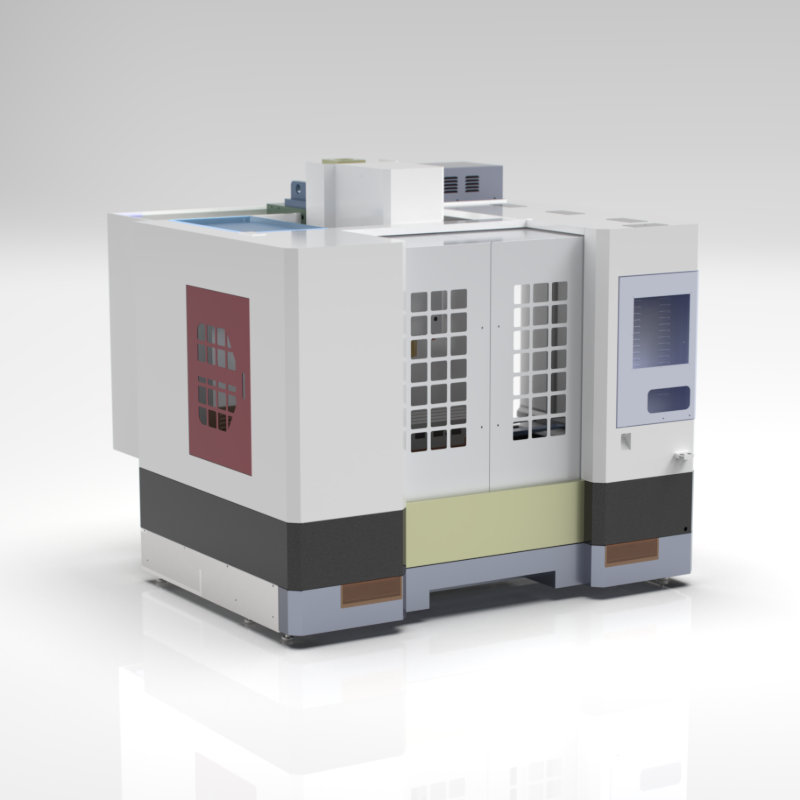

Water Jet Guided Laser CNC

· Marble Bed
· High precision, non-deforming, excellent shock resistance
· Straight cut edges

We are available 24/7 by e-mail, whatsapp or by phone. You can also use our quick contact form to ask a question about our products.

Submit

Product Description:

Features


• Marble Bed

• High precision, non-deforming, excellent shock resistance

• Straight cut edges

• No taper on cut edges, completely parallel

• Smooth surface

• Cutting surface is smooth, no thermal deformation or damage

• Fast and accurate

• High processing accuracy, narrow cut width, fast cutting speed

• Easy to operate

• Large working distance, no need for focusing


Applications


High precision cutting and drilling of materials such as liquid metals, semiconductor materials, ceramics, silicon carbide, diamond, thermal barrier coatings, hard alloys, Kovar alloys, carbon fiber composites, etc


Specifications


System

Subject

Configuration

Optical Path

Laser Type

Nd:YAG,pulsed

Average Power

60/100/200W

Wavelength

532nm

Pulse Width

120-200ns

Water Loop

Nozzle Diameter

50/60/80/100/120um

Water Pressure (max)

50-100bar

Water Pressure Stability

±5bar

Motion Servo

Processing Range

600x600x200mm(Customizable)

A-axis Rotation Range

±100

C-axis Rotation Range

360°

AZ-axis Rotation Range

±20

XY-axis Positioning Accuracy

±5um

XY-axis Repeat Positioning Accuracy

±2um

Z-axis Positioning Accuracy

±0.02mm

Z-axis Repeat Positioning Accuracy

±0.01mm

AZ-axis Repeat Positioning Accuracy

±1sec

Worktable Size

φ300mm

Worktable Load

50kg

Control

3D Five-axis Cutting Software

Customize Development

Dimmensions

Processing Platform Size

W1500×L1700×H2150(mm)

Electrical Control Cabinet Size

W700×L1700×H1850(mm)

Equipment Weight

5T
