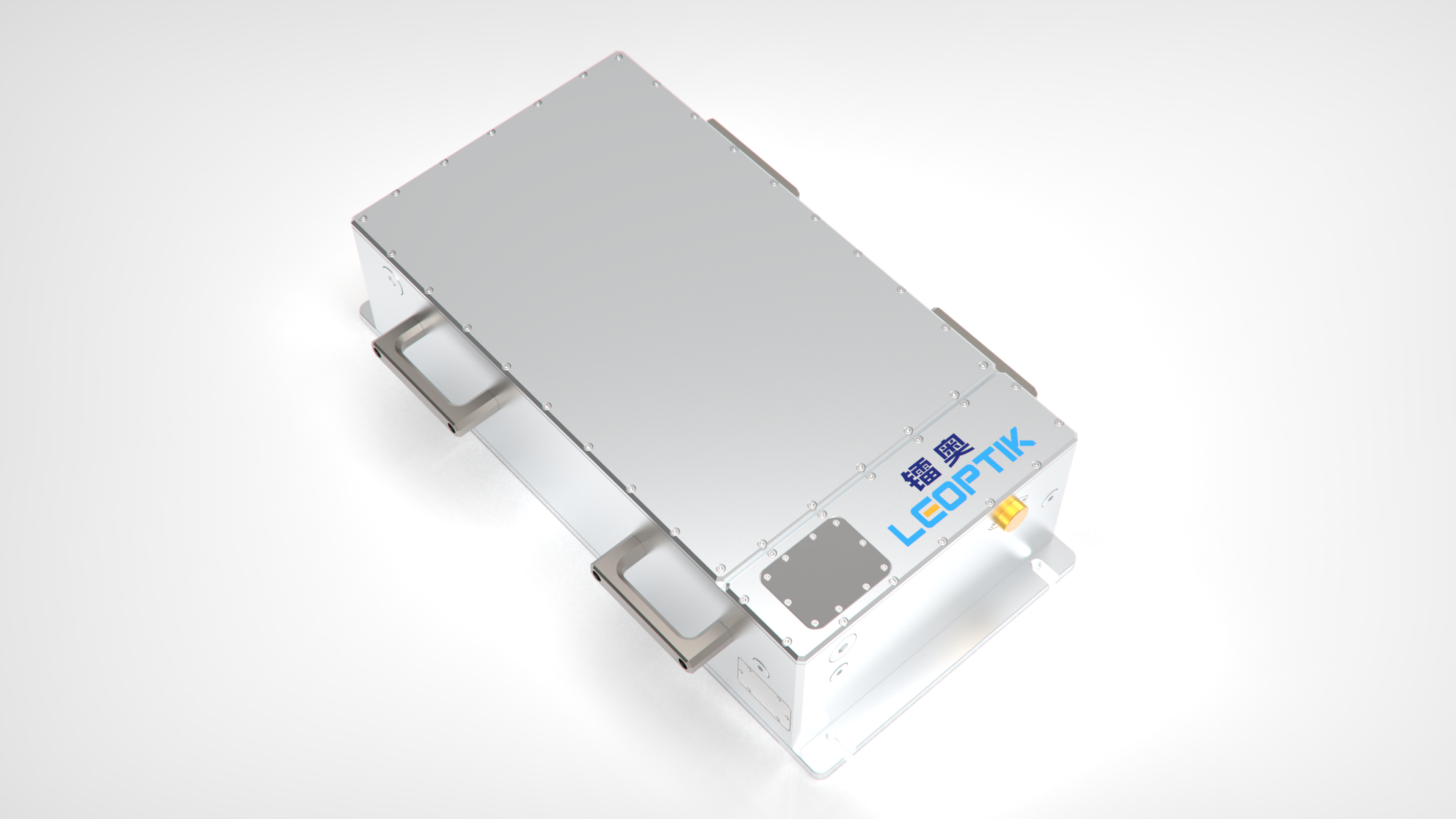

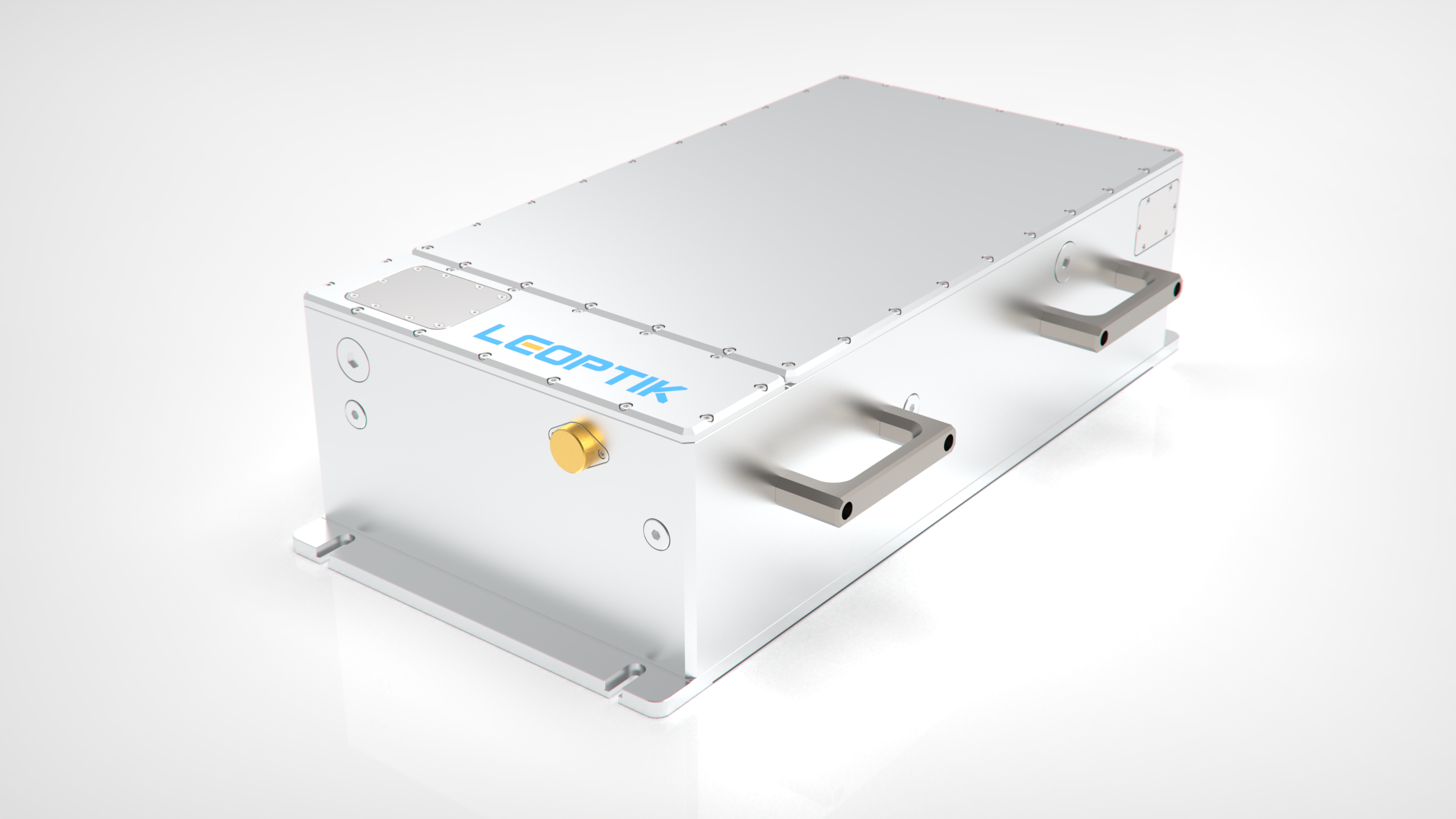

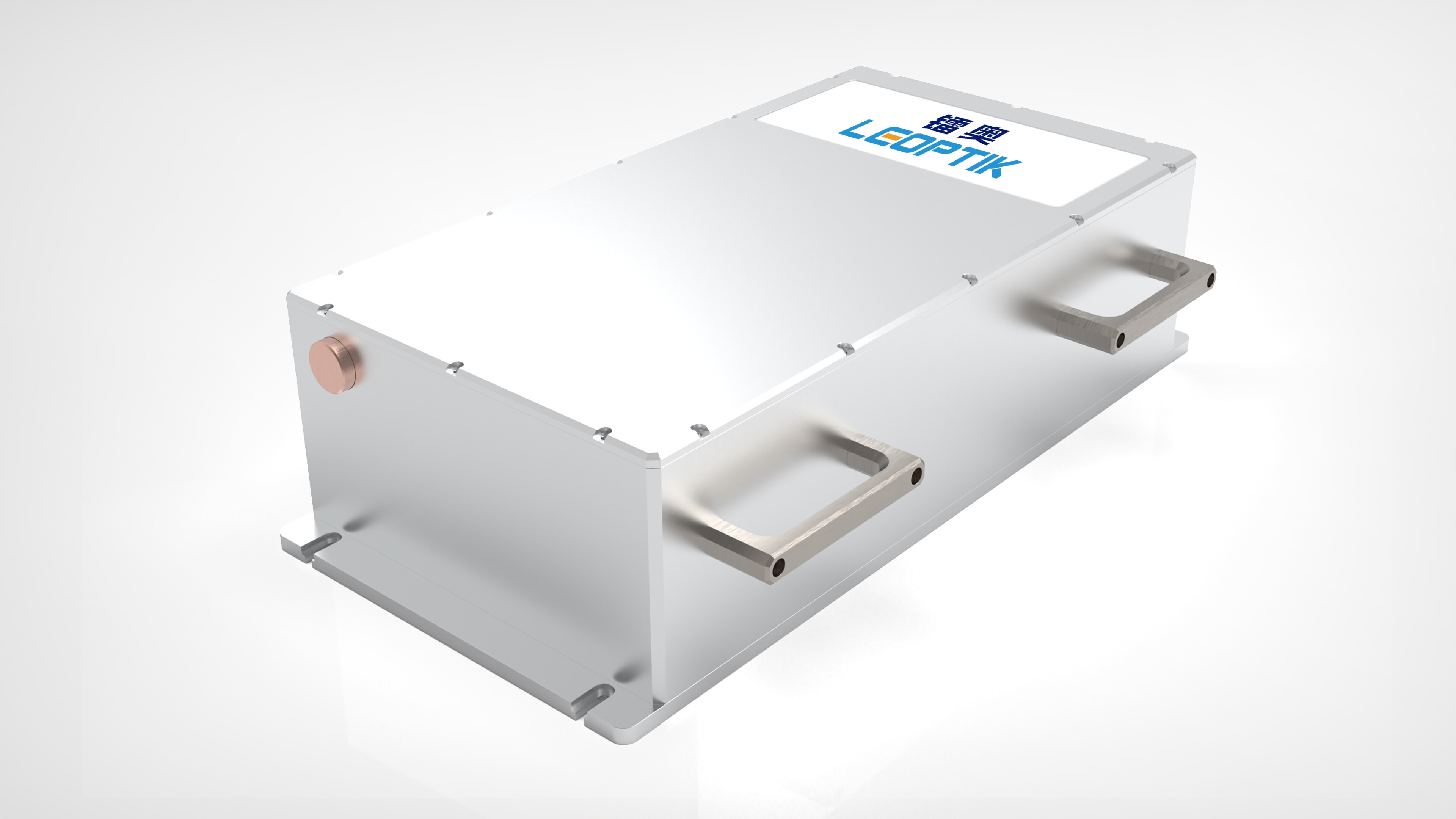

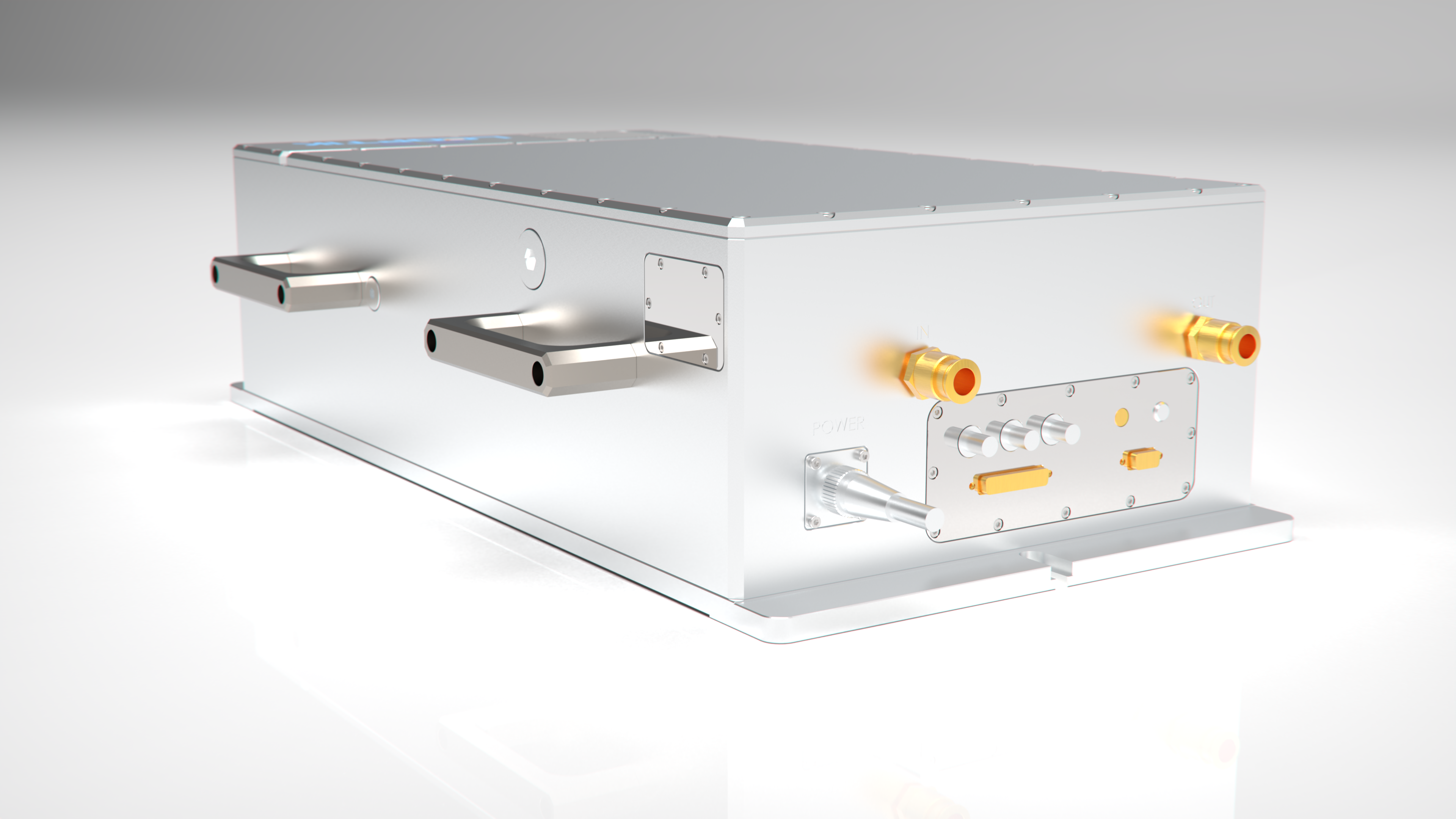

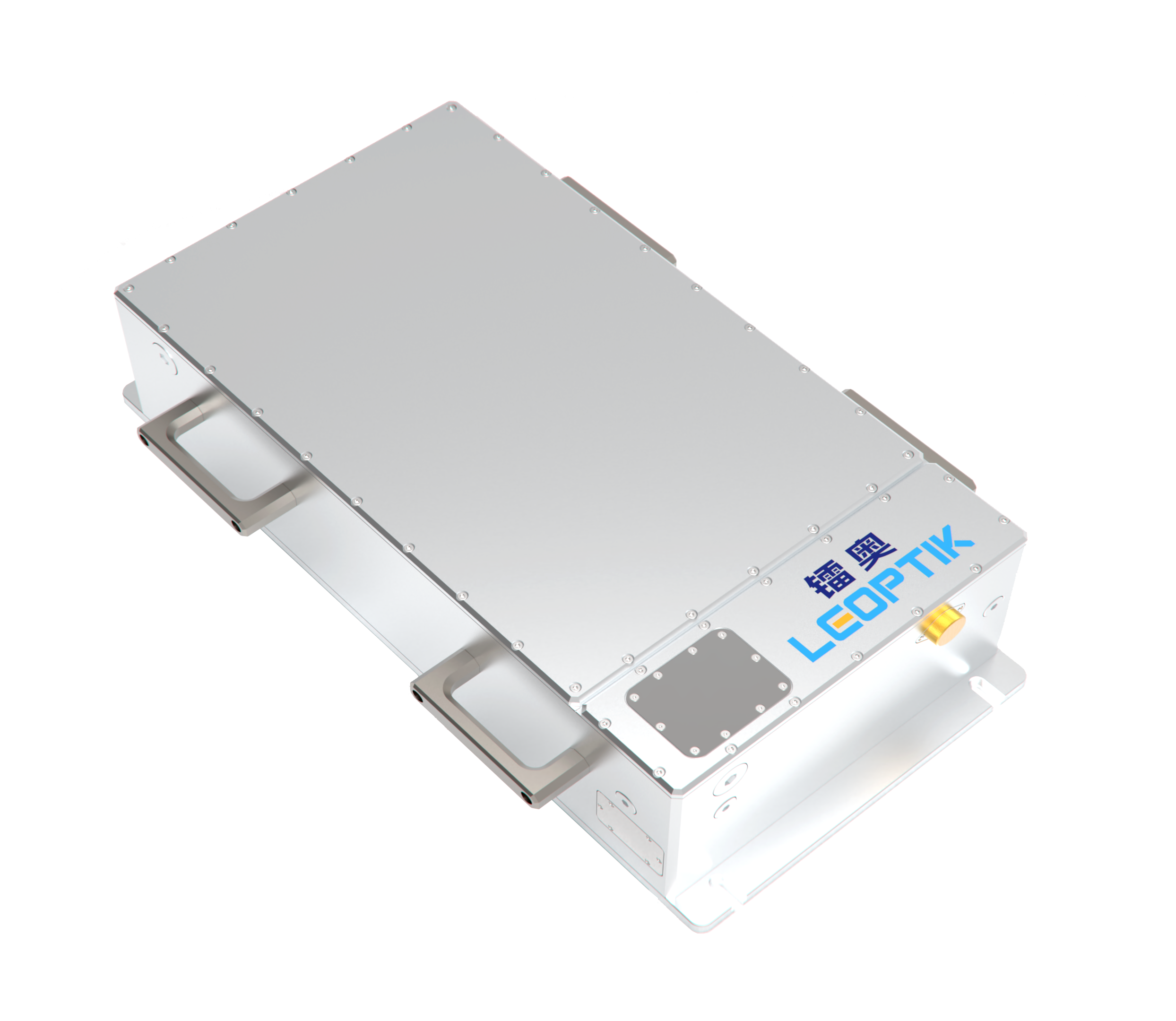

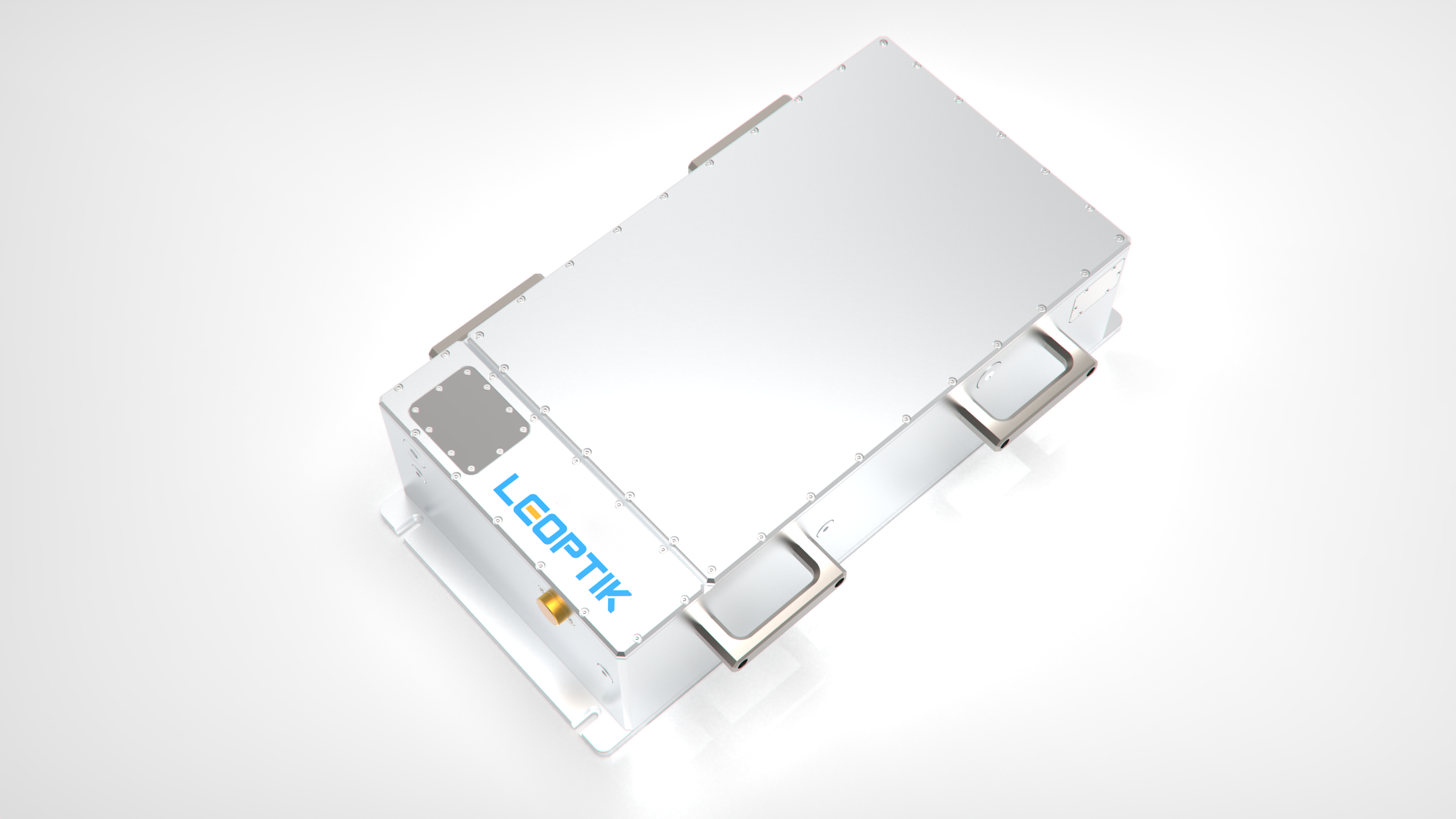

1064/532/355nm High Power Picosecond Laser

Contact Sales

The 1064/532/355 nm high-power picosecond laser is designed for advanced precision laser processing applications. It delivers high pulse energy, excellent beam quality, and multiple wavelength options, making it ideal for machining hard and brittle materials such as sapphire, ceramics, semiconductors, OLED, and glass. It is also widely used in polymer processing, metal sheet etching, 3C manufacturing, photovoltaic industries, and high-precision drilling, including fuel nozzle and micro-hole fabrication. Its stable performance and compact design ensure reliable operation in both industrial and research environments.

We are available 24/7 by e-mail, whatsapp or by phone. You can also use our quick contact form to ask a question about our products.

Product Description:

1064/532/355nm High Power Picosecond Laser

1. Excellent beam quality M²<1.3

2. High long-term power stability RMS<1%

3. High average power >100W@1064nm

PRODUCT INTRODUCTION

1. Hundred-level ultra-clean laboratory encapsulation

2. Intergrated design, compact structure and reliable performance

3. High average power and excellent pulse energy

4. High stability for long-term working, 24/7 industrial application

5. Selectable functions of operator lock and alarm setting

TYPICAL APPLICATION

1. Machining of Hard and Brittle Materials

2. Semiconductor

3. Solar Industry

4. Polymer Materials

5. 3C Industry

PRODUCT INTRODUCTION

MODEL	PU355	PV532	PN 1064
Wavelength	355nm	532nm	1064nm
Repetition Frequency	50kHz~2MHz
Pulse Width	＜15 ps
Average Power	5-40W	5-60W	5-100W
Average Power Stability	<3%RMS over 24 hours
Single Pulse Stability	<3%RMS
Spot Mode	TEM00 (M²<1.3）
Beam Divergence Angle	<2mrad
1/e² Beam Diameter	2.0±0.5mm		2.5±0.5mm
Beam Roundness	>90%
Directional stability	<50μrad/℃
Polarization Direction	Horizontal
Polarization Ratio	>100:1
Operating Voltage	90-260VAC
Cooling	Water-cooled

Pulse Width: 13.8 ps Beam Quality: M² < 1.3 Beam Profile
