Product Description:

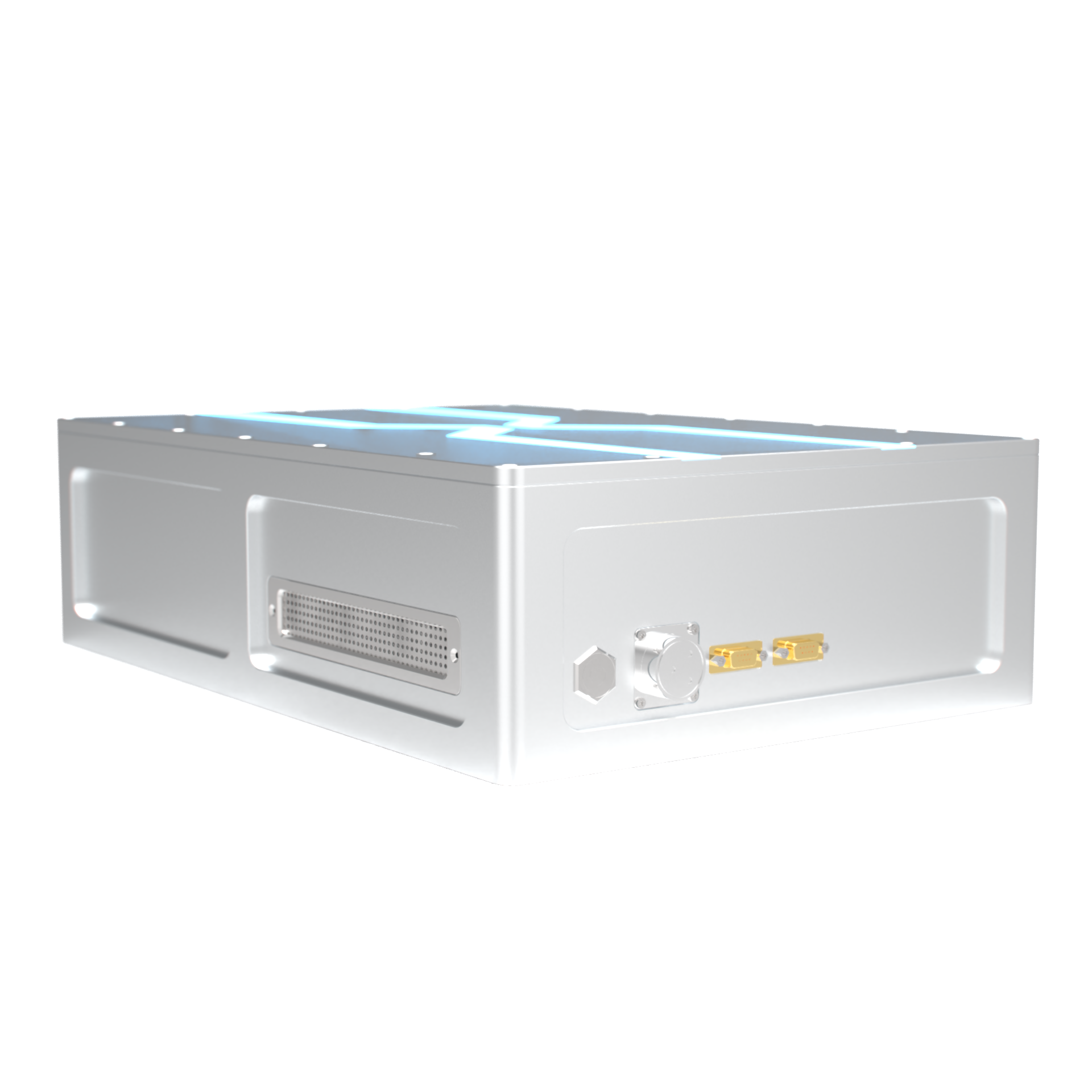

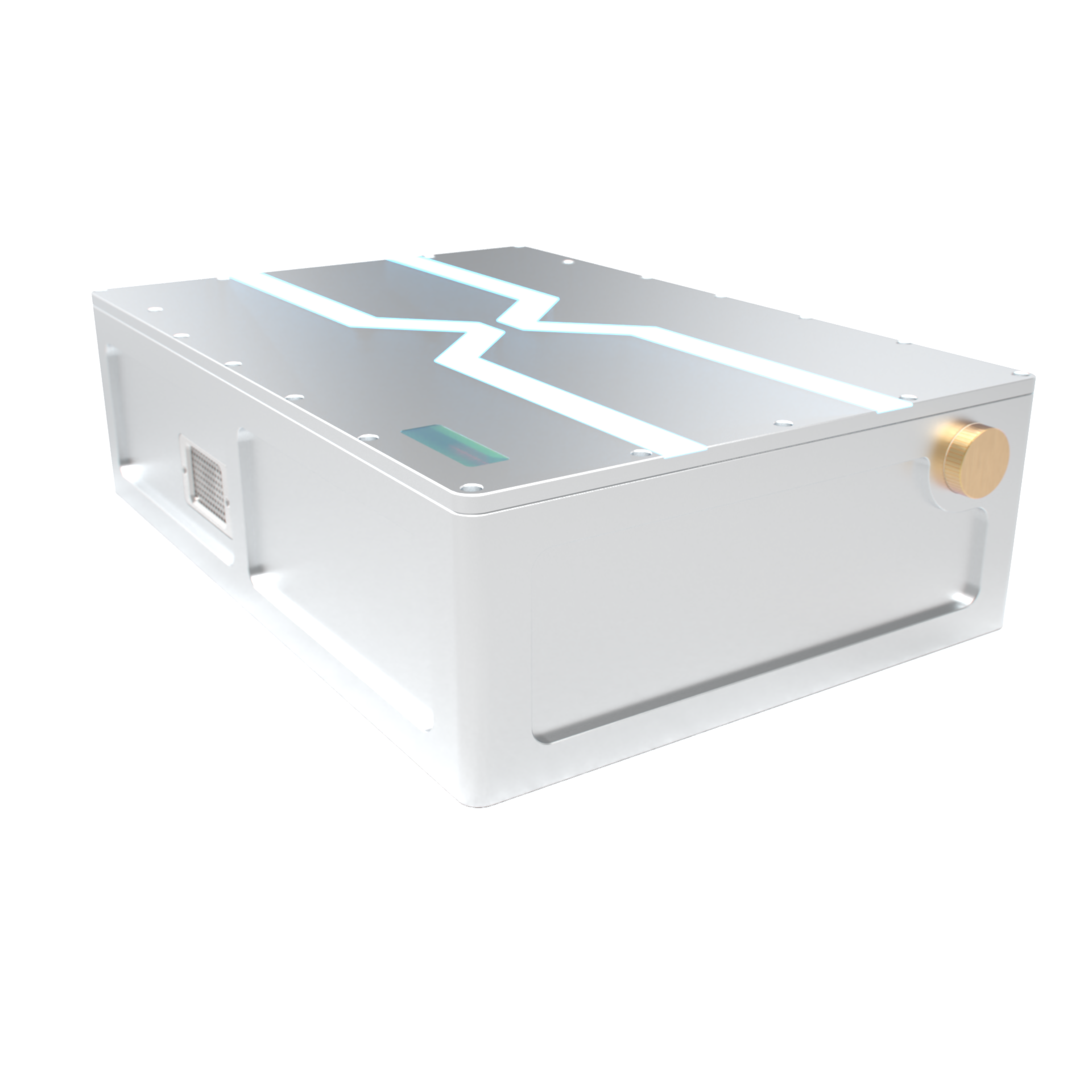

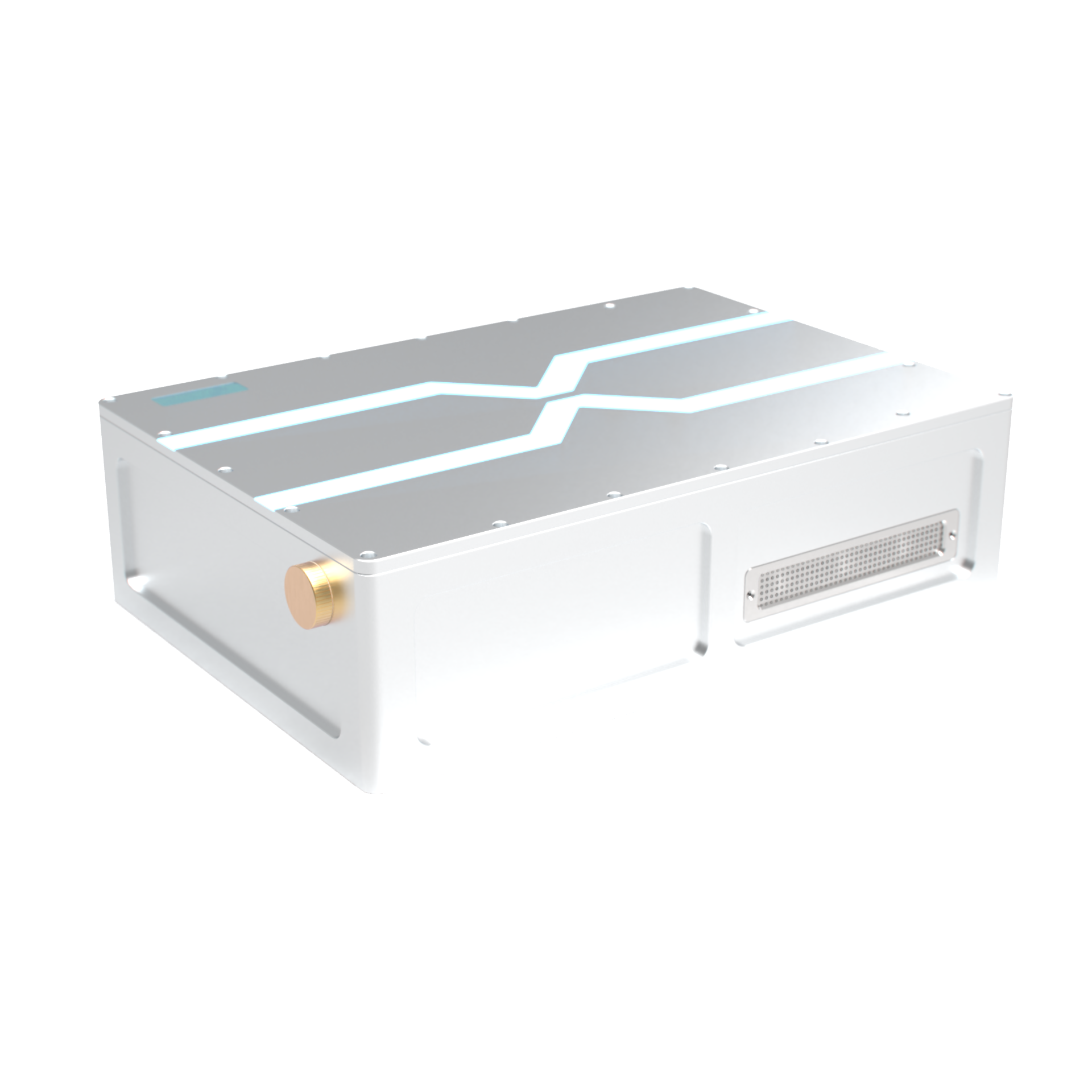

ULTRAVIOLET NANOSECOND LASER


PRODUCT INTRODUCTION

1. 200-400nm coverage of deep UV to UV spectrum

2. Adjustable repetition frequency, 20kHz-200kHz arbitrary  adjustable

3. Integrated design of optical and control system


TYPICAL APPLICATION

Used in high-end electronic products appearance LOGO logo;  Food, PVC pipe, medical packaging, cable wire and other  materials marking; PCB, EPC QR code marking; Removal of  metal or non-metal coating; Flame retardant material marking;  Medical, medical testing and other applications


PRODUCT INTRODUCTION

MODELNW320
Repetition frequency20 kHz - 50 kHz
Lasing Wavelength200 nm - 400 nm
Average output power> 3W
Pulse width< 50 ns
Single pulse energy50 μJ - 100 μJ
M2<1.2
Degree of polarization100:1 polarization ratio
Spot diameter1.1 mm ± 0.1mm
Full Angle of divergence<2 mrad
Spot symmetr>90%
Beam directivity<± 25 prad/℃
