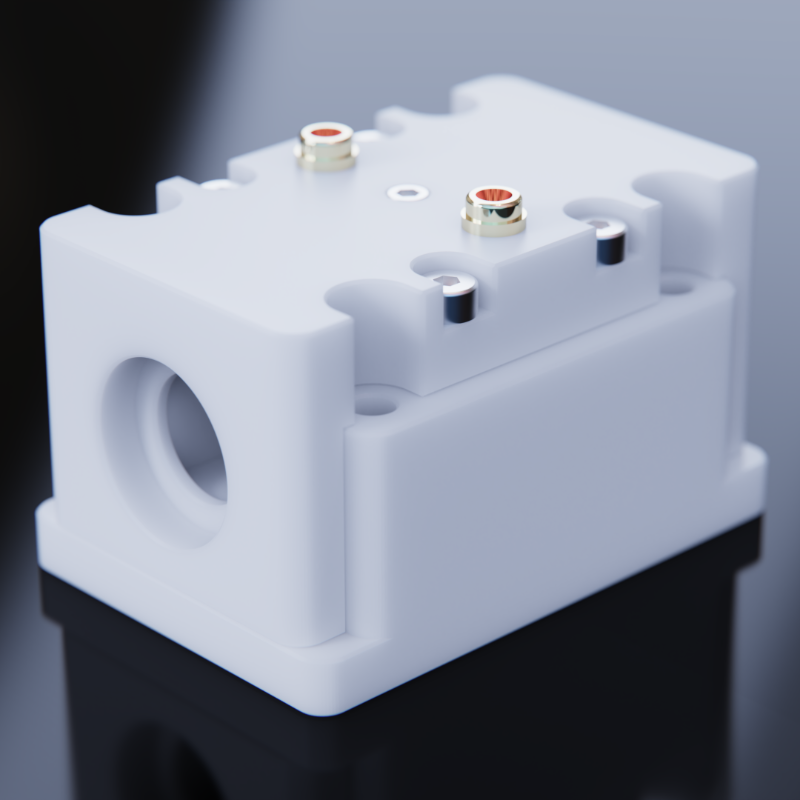

LN Pockels Cell

Model: CS032855/ CS052855 / CS082855 / CS092855
Dimensions: 55×28×24
Clear Aperture: 2.5/ 5/ 8/ 9

We are available 24/7 by e-mail, whatsapp or by phone. You can also use our quick contact form to ask a question about our products.

Submit

Product Description:

ModelCS032855CS052855CS082855CS092855
Dimensions55×28×24
Clear Aperture2.5589
Wavelength1064nm1064nm1064nm1064nm
ElectrodesAu/CrAu/CrAu/CrAu/Cr
HalfWave Voltage400V@632.8nm800V@632.8nm

QuarterWave Voltage

1800-1900V@1064nm2100V@1064nm
Insersion Loss<3%<3%<3%<3%
Wavefront Distrotionλ/8 @ 632.8nmλ/8 @ 632.8nmλ/8 @ 632.8nmλ/8 @ 632.8nm
Extinction Ratio200:1(Section 5mm)200:1(Section 5mm)200:1(Section 5mm)200:1(Section 5mm)
Capacitance<5<5<5<5
LIDT100MW/cm2200MW/cm2200MW/cm2200MW/cm2
* Choose near stoichiometric ratio LN or MgO: LN. It is also possible to customize cylindrical shells. Structure and function parameters can be customized according to customer requirements. The pictures and forms are for reference only and do not constitute an offer. The actual parameters are subject to the contract agreement.
