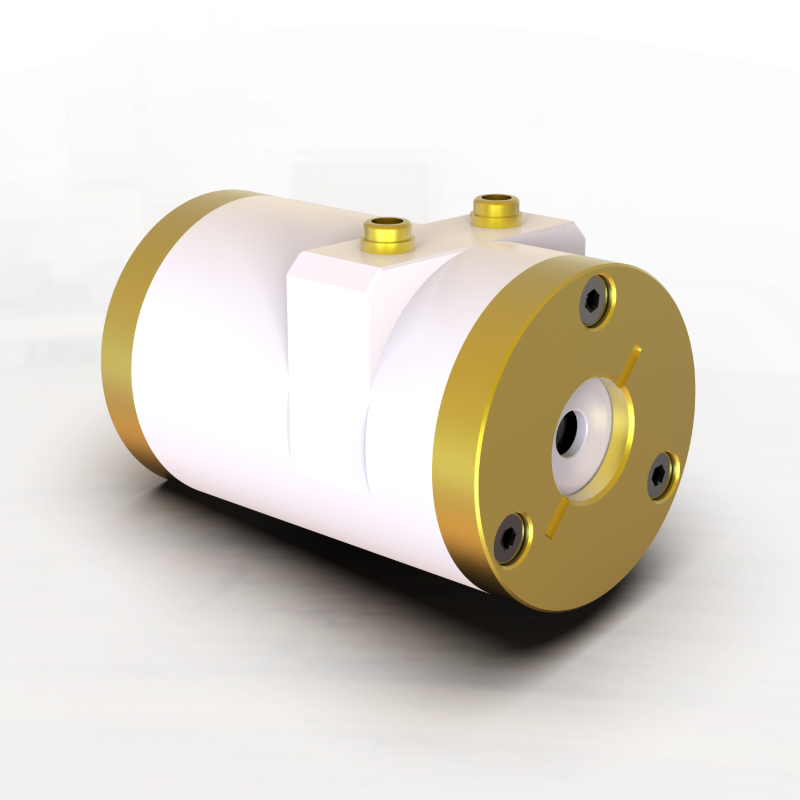

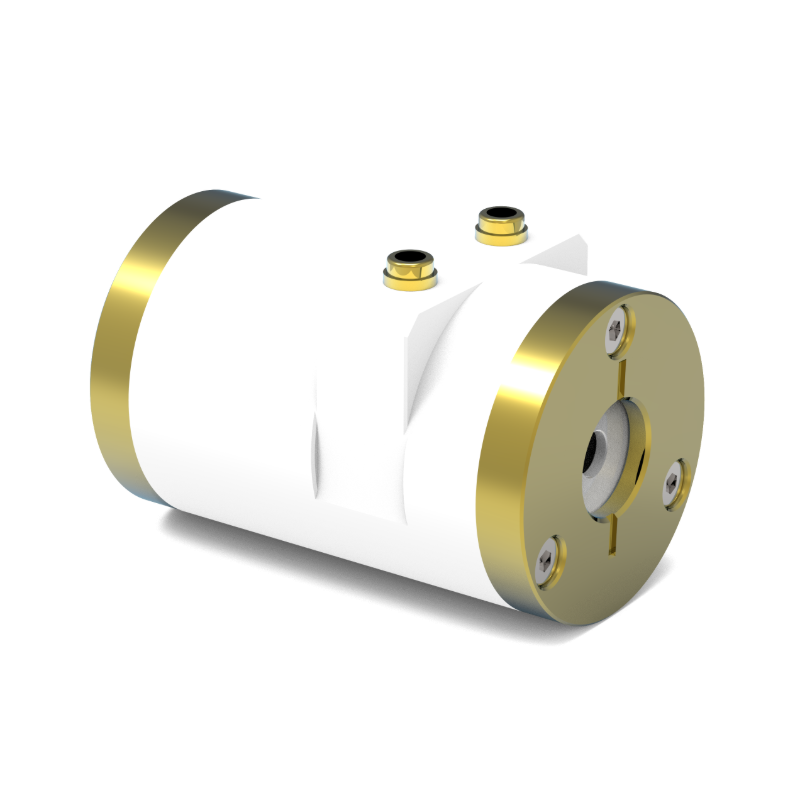

BBO Pockels Cell
‹
›
We are available 24/7 by e-mail, whatsapp or by phone. You can also use our quick contact form to ask a question about our products.
Product Description:
BBO-based pockels cell are used to change the polarization state of light passing through it when an voltage is applied to the electrodes of BBO electro-optic crystals. Typical applications include Q- switching of the laser cavity, laser cavity dumping and coupling light into and form regenerations amplifiers. Low piezoelectric ringing makes BBO Pockels cell attractive for the control of high-power and high repetition rate lasers. Fast switching electronic drivers properly matched to the cell are available for Q-switching, cavity dumping and other applications. BBO Pockels cells are transverse field devices. The quarter-wave voltage is proportional to the ratio of electrode spacing and crystal length, therefor, smaller aperture, lower quarter wave voltage, besides, double crystal design, which has lower quarter-wave voltage, is widely used to work in half-wave mode with fast switching ti mes.
Broad transmission ranges from 200nm to 2000nm
FEATURES
• Compact size
• Low absorption
• Minimal piezoelectric ringing
• Broad transmission ranges from 200nm to 2000nm
SPECIFICATIONS
