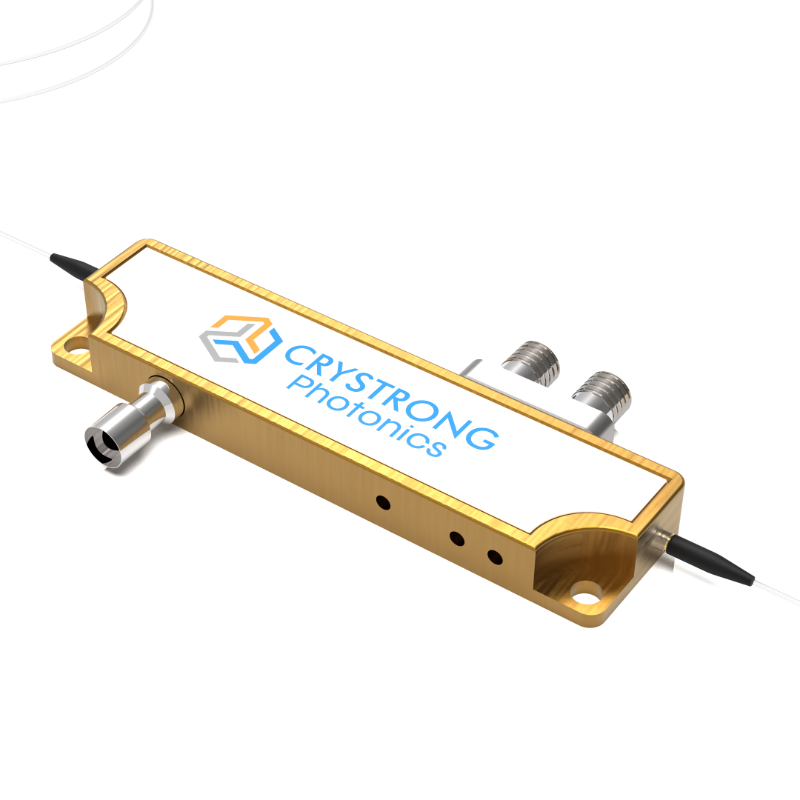

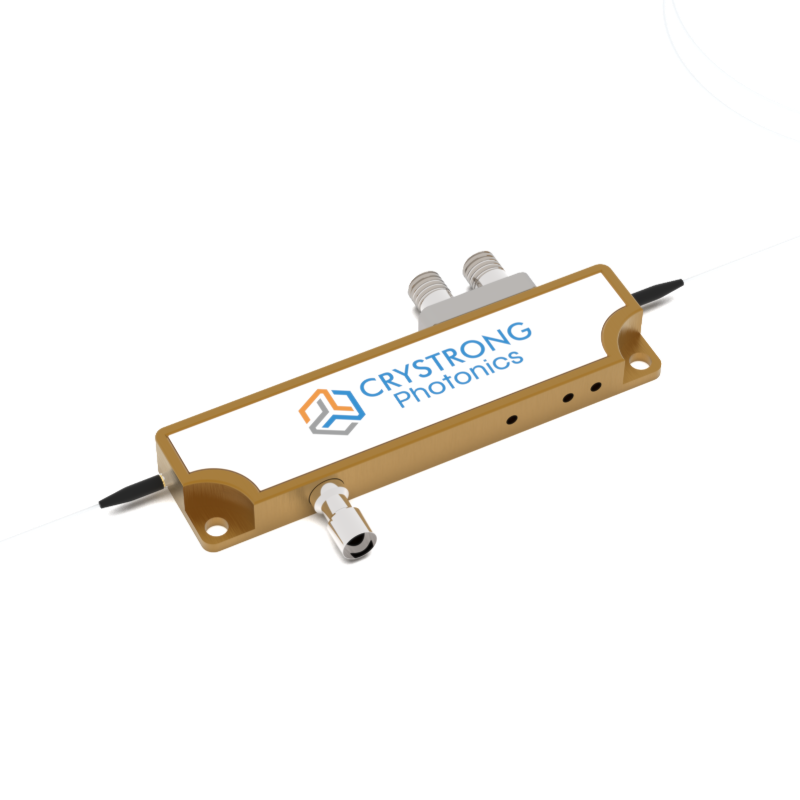

LiNbO₃ Wide Bandwidth Phase Modulator
‹
›
We are available 24/7 by e-mail, whatsapp or by phone. You can also use our quick contact form to ask a question about our products.
Product Description:
Features
• High electro-optical bandwidth
• PM fiber input and output port
• Low Vπ voltage
• Low insertion loss
• Long term stability
• Small packaging and lightweight
Overview
LiNbO3 Wide Bandwidth Phase Modulator is manufactured by micro-electronics technology. Waveguides on the modulator are produced by Annealed Proton Exchange(APE) process or Ti-diffusion process. They can work on single polarization or birefringence situation. With traveling-wave electrode, the modulator are ideally suited for high bandwidth operation at 1GHz, 10GHz, 20GHz, and up to 30GHz. It also has highly reliable performance with wide temperature range tolerance.
Applications
• Side bands generation
• Interferometric sensing
• Frequency shifting/broadening
• Quantum key distribution
Related product recommendations

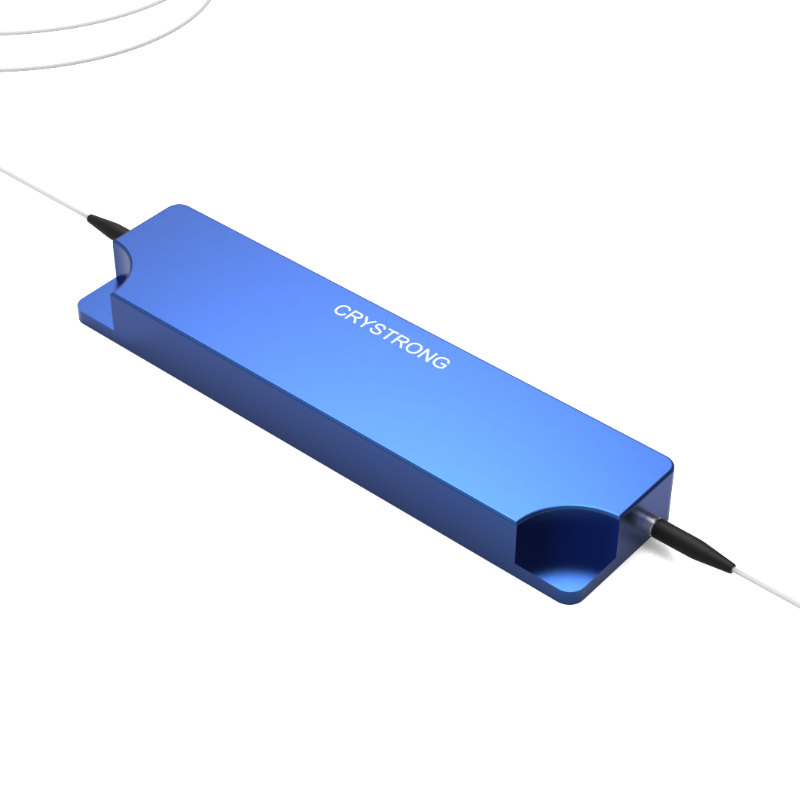

PPLN WaveguideProton exchange method and metal diffusion method are the most common methods to prepare lithium niobate waveguide, due to the use of these two methods of the preparation of waveguide device waveguide differ with the refractive index of substrate layer is small, light limit function is weak, and in the process of making the introduction of foreign ions can destroy the properties of lithium niobate crystal, so as to affect the performance of the waveguide.- Multi-function Integrated Optic Chip (Y Waveguide Modulator)Multi-function integrated optical chip (MIOC, or Y Waveguide Modulator) is a key component in Fiber Optic Gyroscope (FOG) for measuring angular velocity of an inertial navigation system. This integrated device, fabricated on Lithium Niobate (LiNbO3) material, is composed of a polarizer, a Y-junction coupler and dual electro-optical phase modulators. Waveguides on the chip are produced by the Annealed Proton Exchange (APE) process. This MIOC device has been used in a lot of high-sensitivity inertial navigation systems to detect angular velocity . It has highly reliable performance with wide temperature range tolerance.
