Product Description

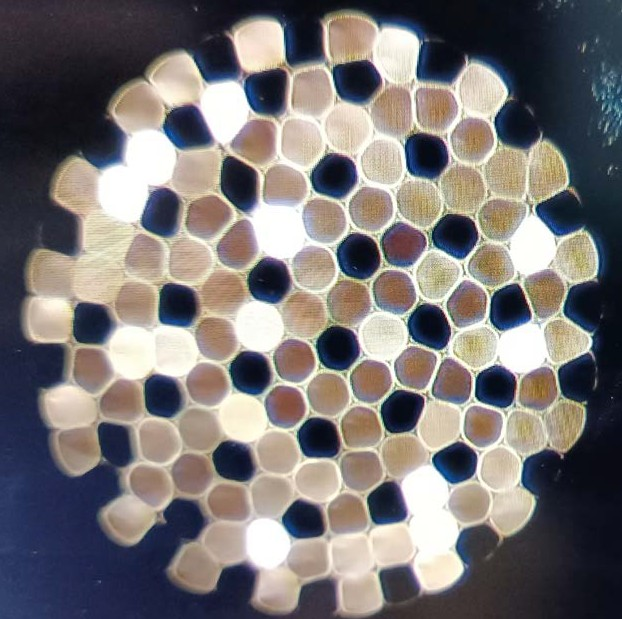

The quartz fiber bundlemade by hot melt process is a kind of optical fiber device that makes multiple optical fibers closely bonded together by heating at high temperature. I t involves stripping a bundle of optical fibers of the coating layer, and then arranging them together in a certain way, and heating them at high temperature to melt them, thus forming a whole optical fiber bundle. Compared with the conventional gluing process, the melting process can increase the duty cycle by . In high power laser transmission, fiber bundles need to withstand high light energy density, so there are high requirements on their materials and processes. The quartz fiber bundle made by hot melt process has high melting point and chemical stability, and can withstand high temperature and high energy density transmission of high power laser.  t the same time, the refractive index of the quartz fiber bundle is low, which can reduce the loss and scattering of the optical signal and ensure the quality and stability of the signal transmission.

Custom parameter：

· Optical fiber category: ultraviolet fiber, infrared fiber

· Number of optical fibers: customized

· Output type: round

· Numerical aperture：0.22

· Optical fiber structure: SMA905, custom

· Structure type: Custom
