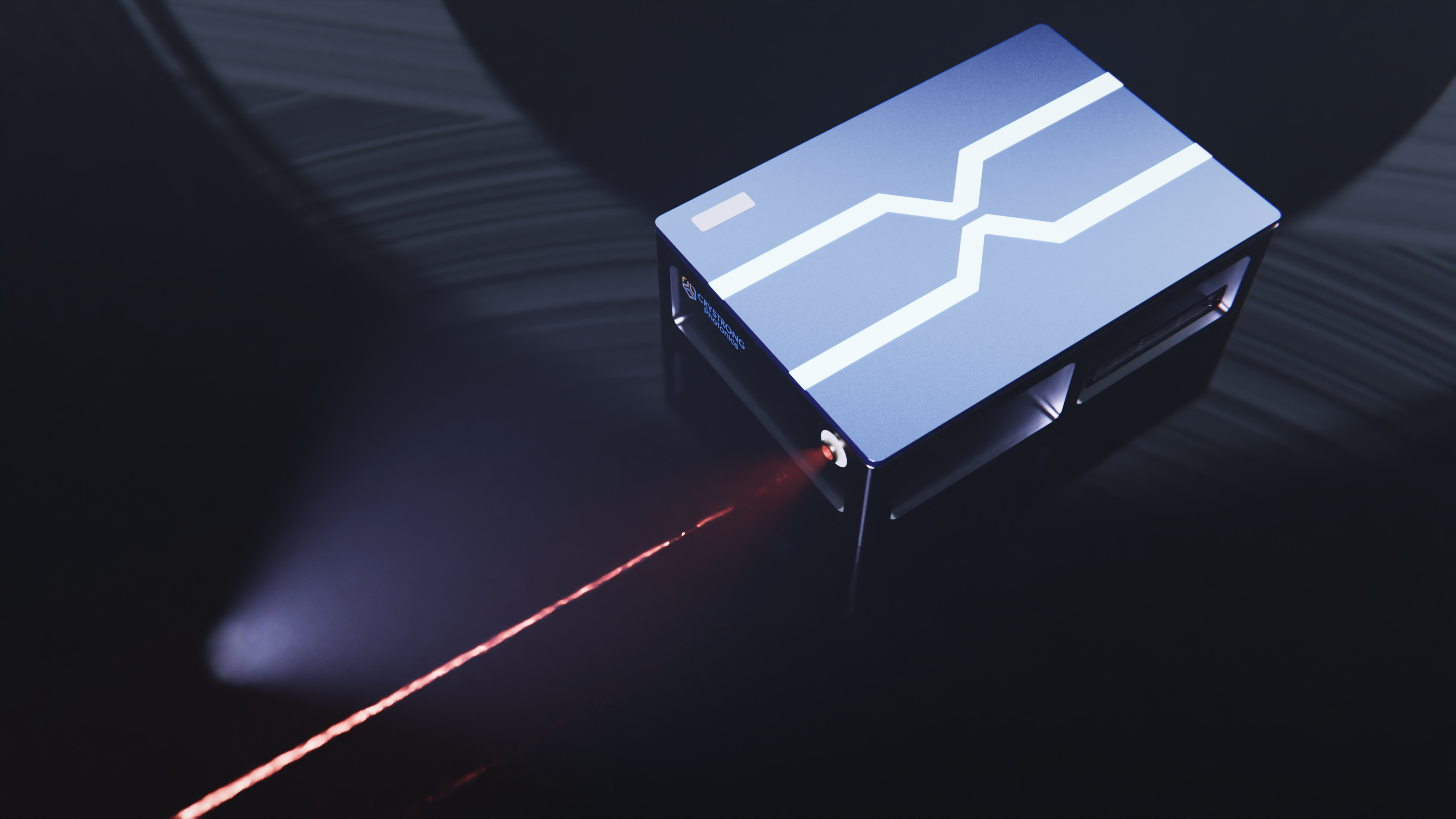

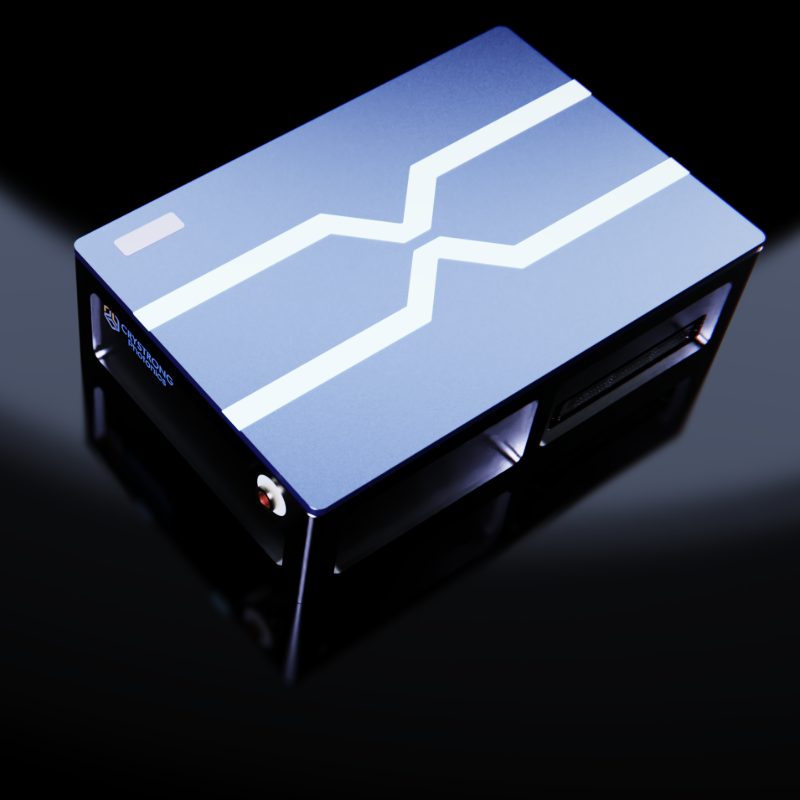

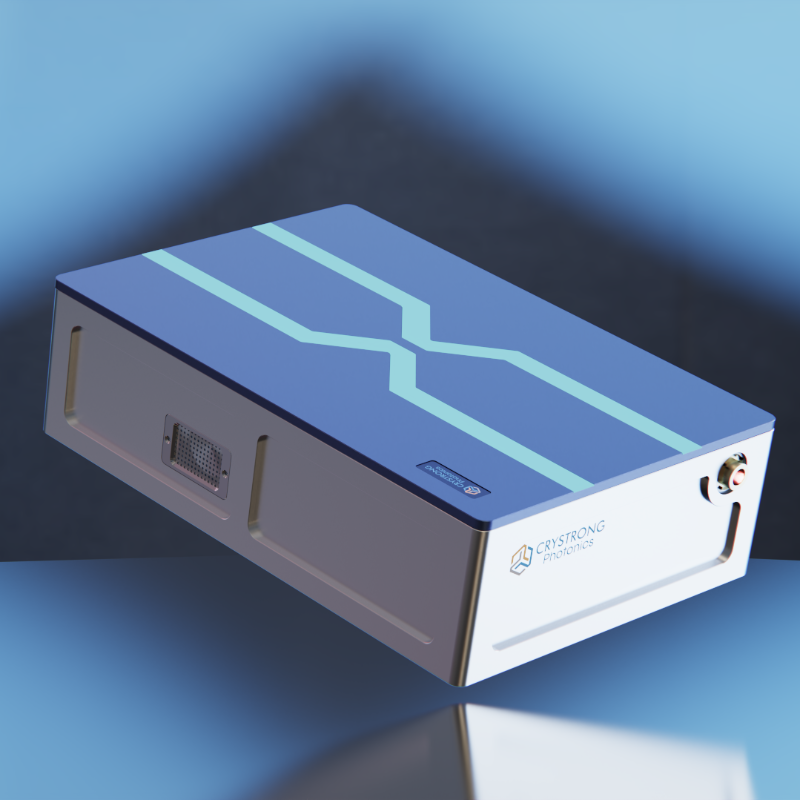

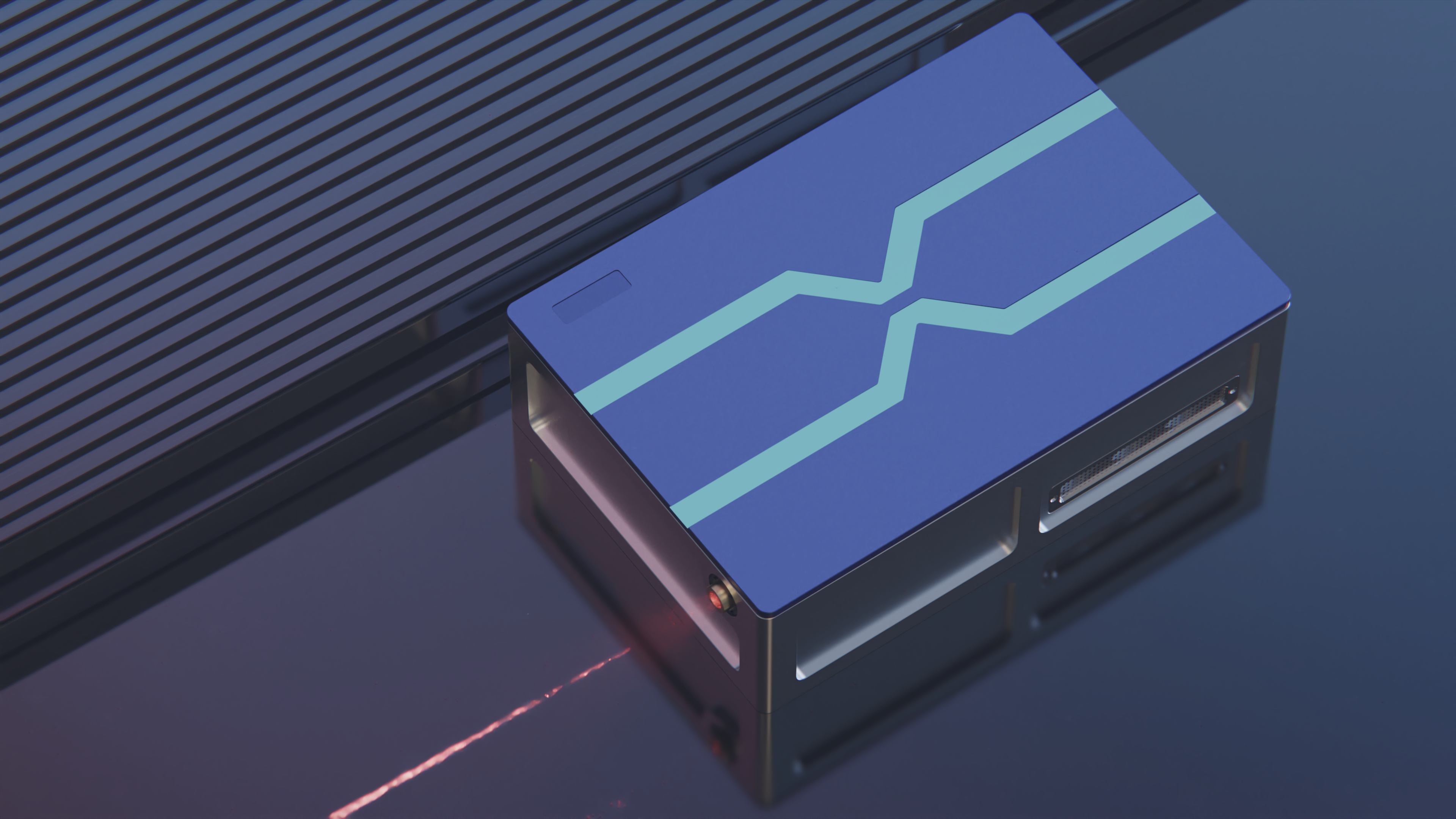

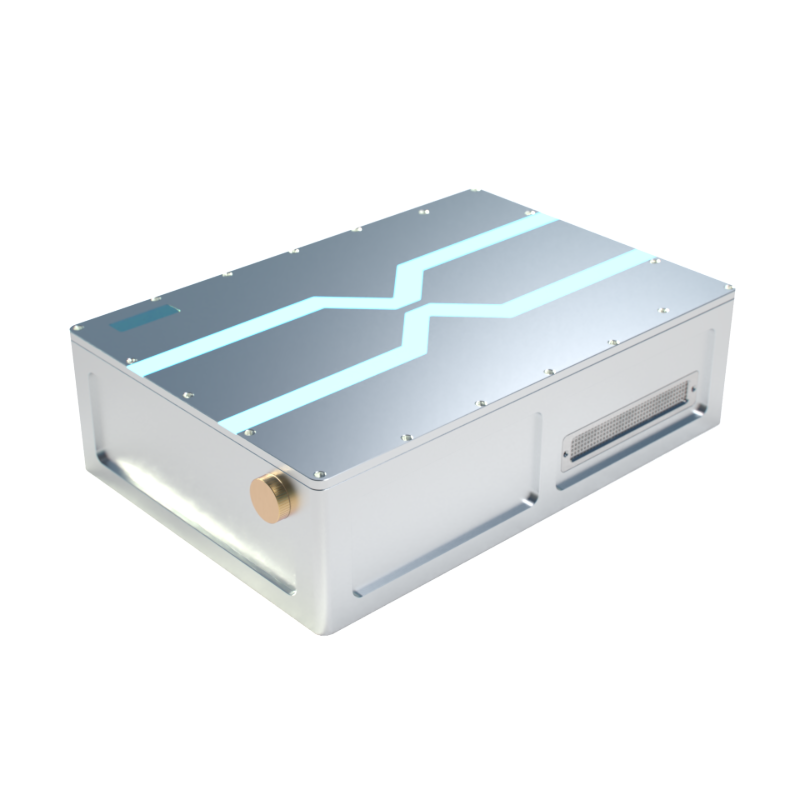

2.8μm Femtosecond Fiber Laser

Contact Sales

Mid infrared femtosecond lasers are suitable for remote sensing,
fiber stripping, semiconductor microprocessing, surface
treatment of polymer materials, waveguide etching, PET film treatment, mid infrared comb, material process detection, high-energy physics, generation of supercontinuum spectra, and other fields.

We are available 24/7 by e-mail, whatsapp or by phone. You can also use our quick contact form to ask a question about our products.

Product Description:

2.8μm Femtosecond Fiber Laser

Flagship Products

1. 200fs pulse duration

2. Average power＞100mW

3. Power stability- RMS＜1%

Typical Application

1. Microsurgery

2. Tissue Ablation and Incision

3. OCT

4. PPM

5. Internal Modification of Transparent Materials

6. Surface Texturing

7. MIR Spectroscopy

8. NLO Research

Product Introduction

Model	PM2800-003NSF
Wavelength	2800±10nm
Spectral Bandwidth	40nm
Repetition Frequency	58MHz
Pulse Width	≤300fs
Average Power	150mW
Pulse energy	>3nJ
Average Power Stability	<1%RMS over 8 hours
Spot Mode	TEM00（M² ＜1.3）
Beam Divergence Angle	<12mrad
1/e² Beam Diameter	3.2±0.2mm
Beam Roundness	>95%
Polarization	Linear
Operating Voltage	90-260V AC
Cooling	Fan-cooled
