Product Description:

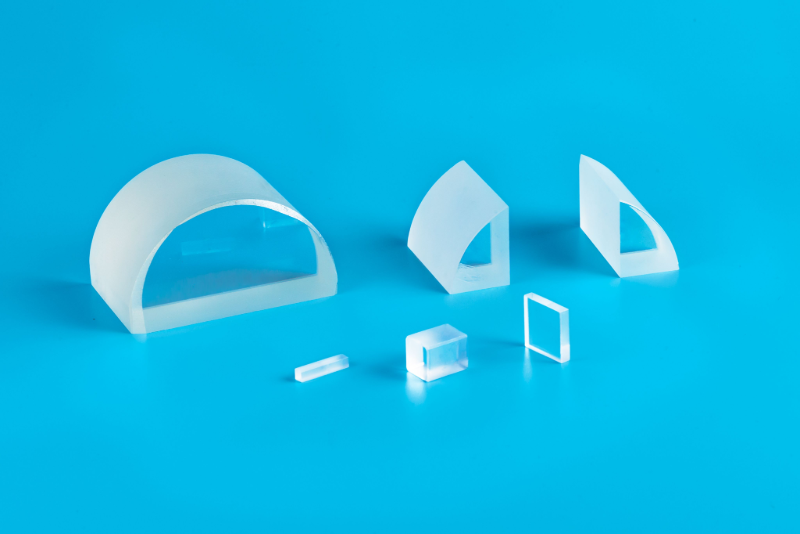

LiNbO₃

Lithium niobate (LiNbO3) crystals are widely used as doubling of wavelengths above 1000 nm and optical parametric amplification of 1064 nm pump light, and can also be used for quasi-phase matching. At the same time, lithium niobate crystals are also widely used in photoelectric regulators and waveguide materials, and as sapphire laser Q switches of Nd:YAG, Nd:YLF and Ti doping. Our company can provide high quality, large size lithium niobate crystals of various specifications for the above purposes.


FEATURES


• Good physical and mechanical properties

• Wide range of light transmission

• Easy to process

• Relatively low material costs


SPECIFICATIONS


Flatnessλ/10
Parallelism≤20 arcsec
Wavefront Distortionλ/10
Surface Quality20-10
Perpendicularity≤5 arcmin
Orientation tolerance≤10 arcmin
Dimension tolerance±0.1mm
Clear Aperture90% of central area
Chamfer≤0.2mmx45°
